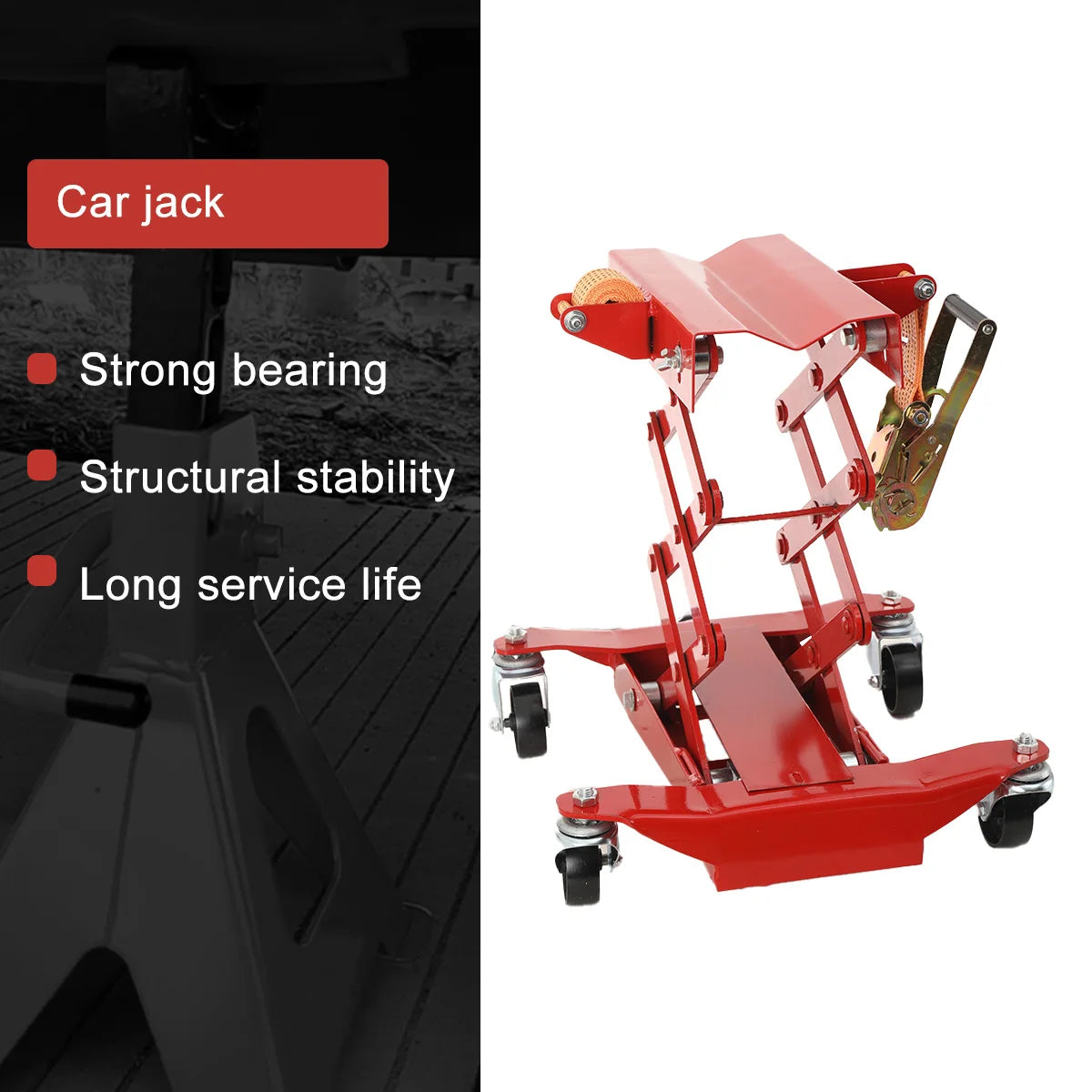

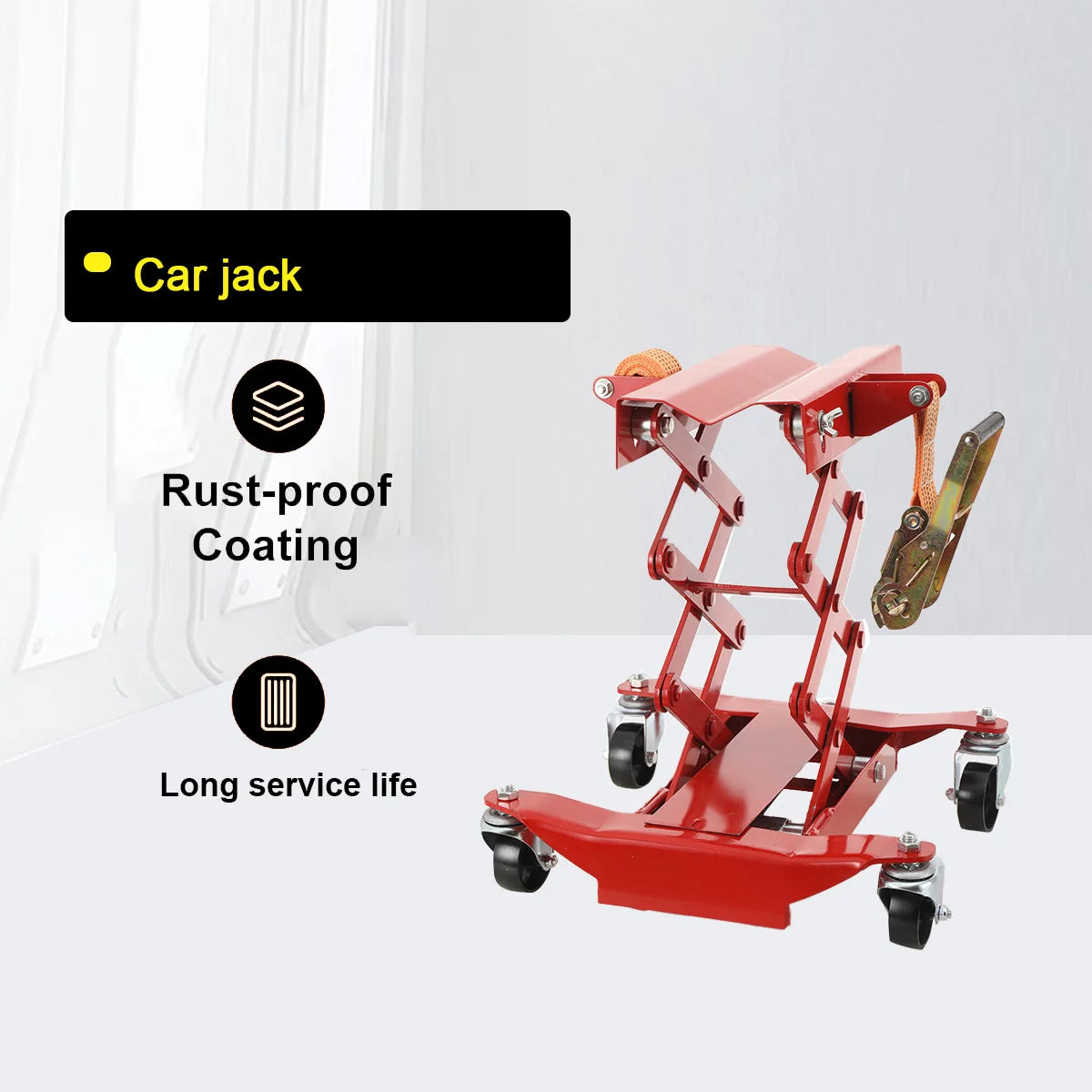

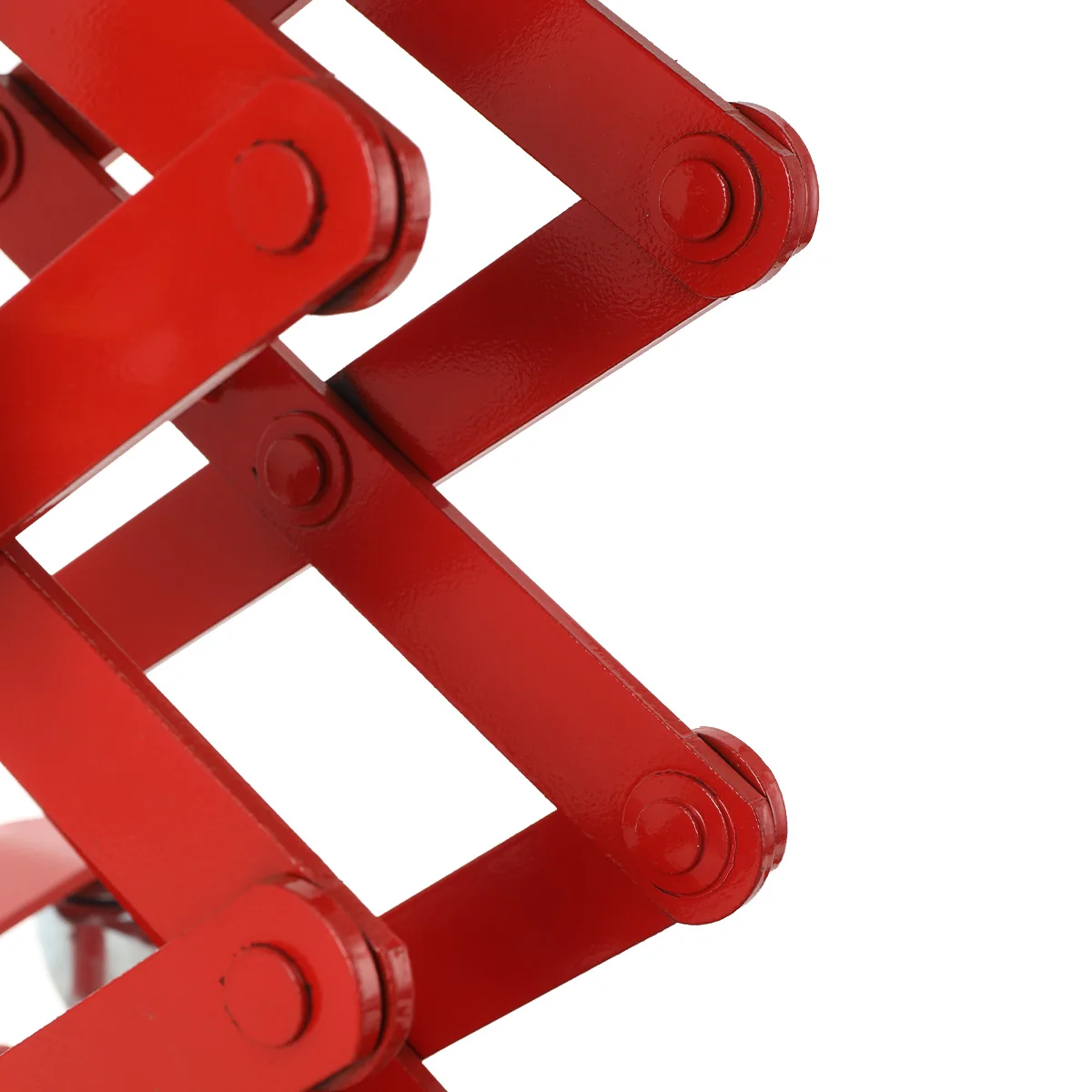

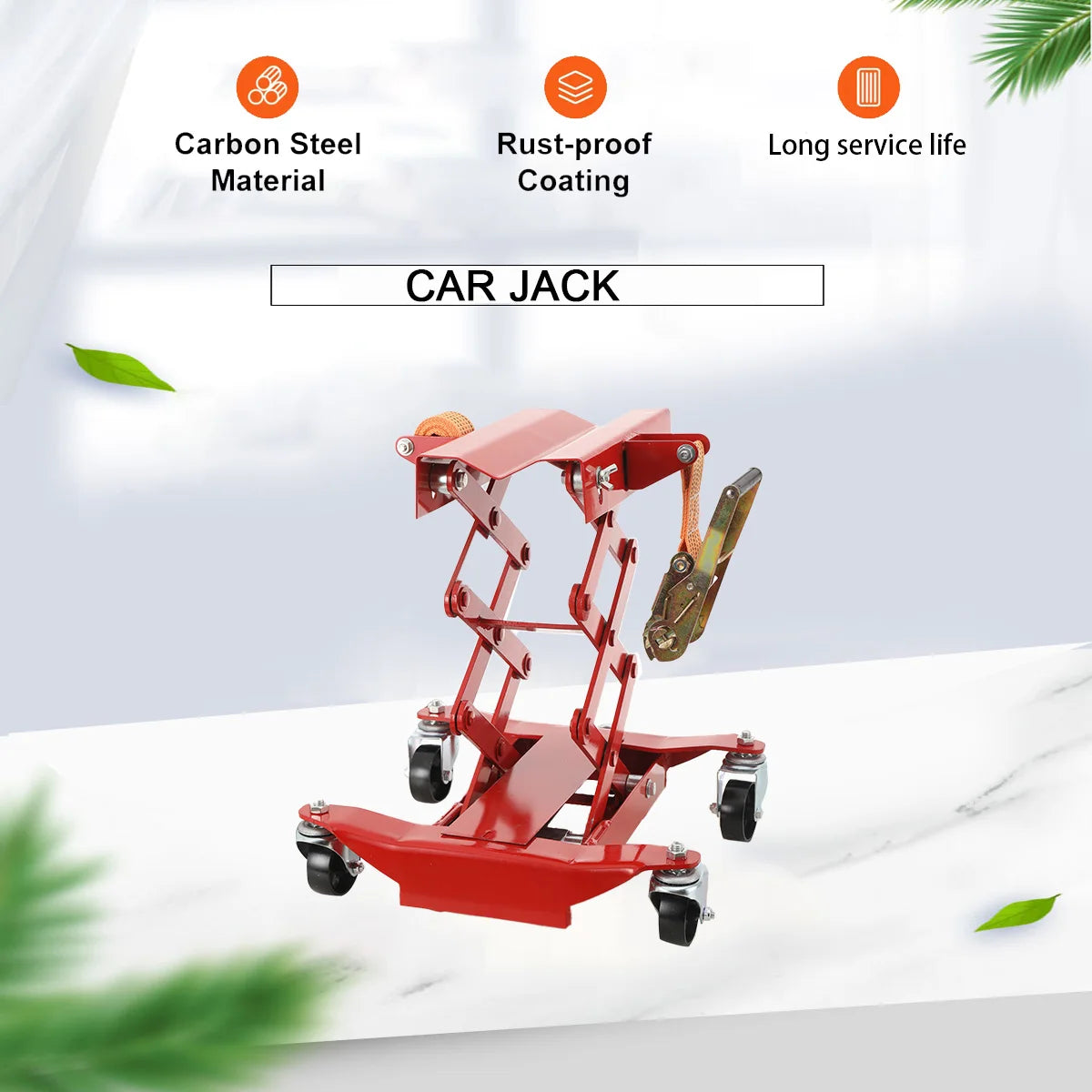

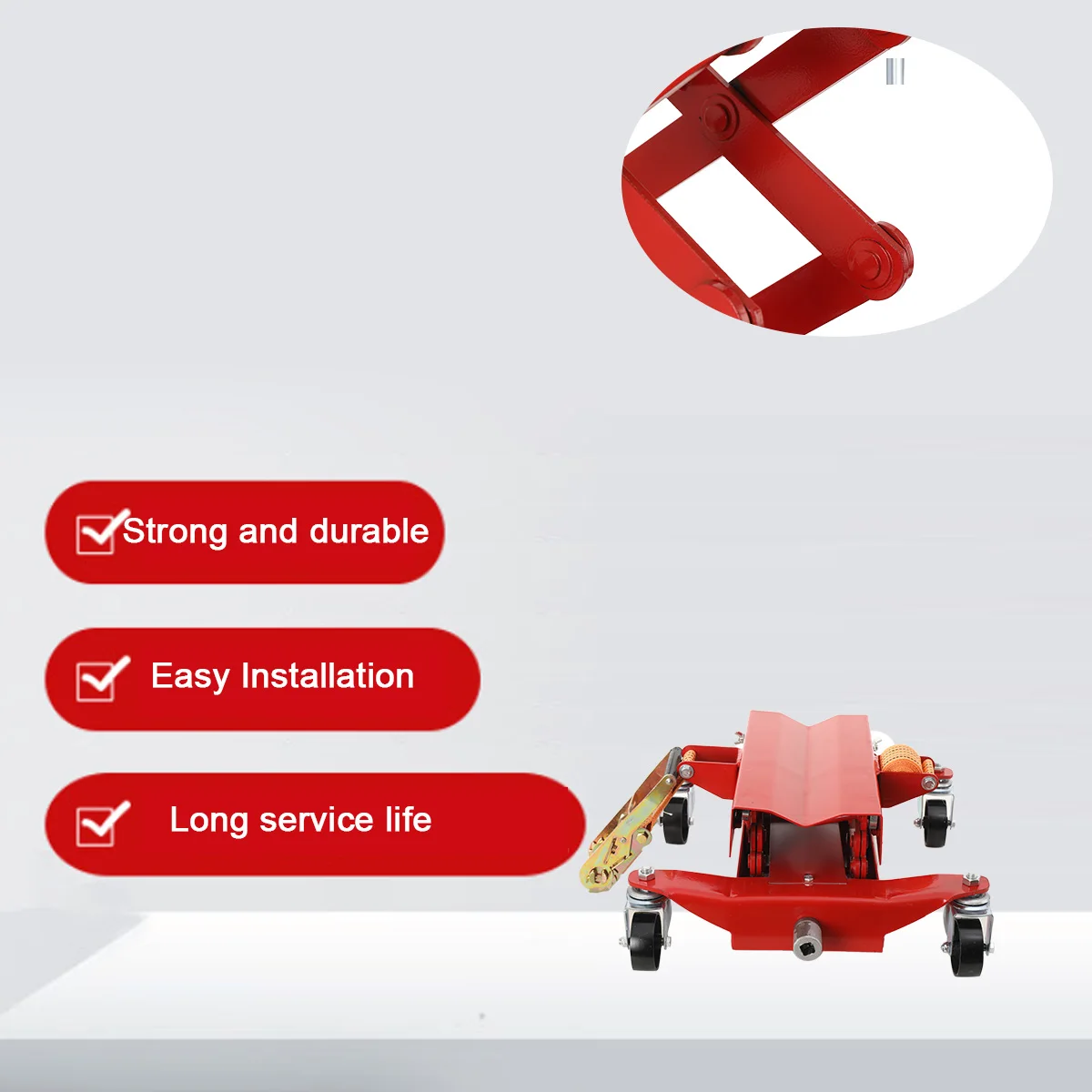

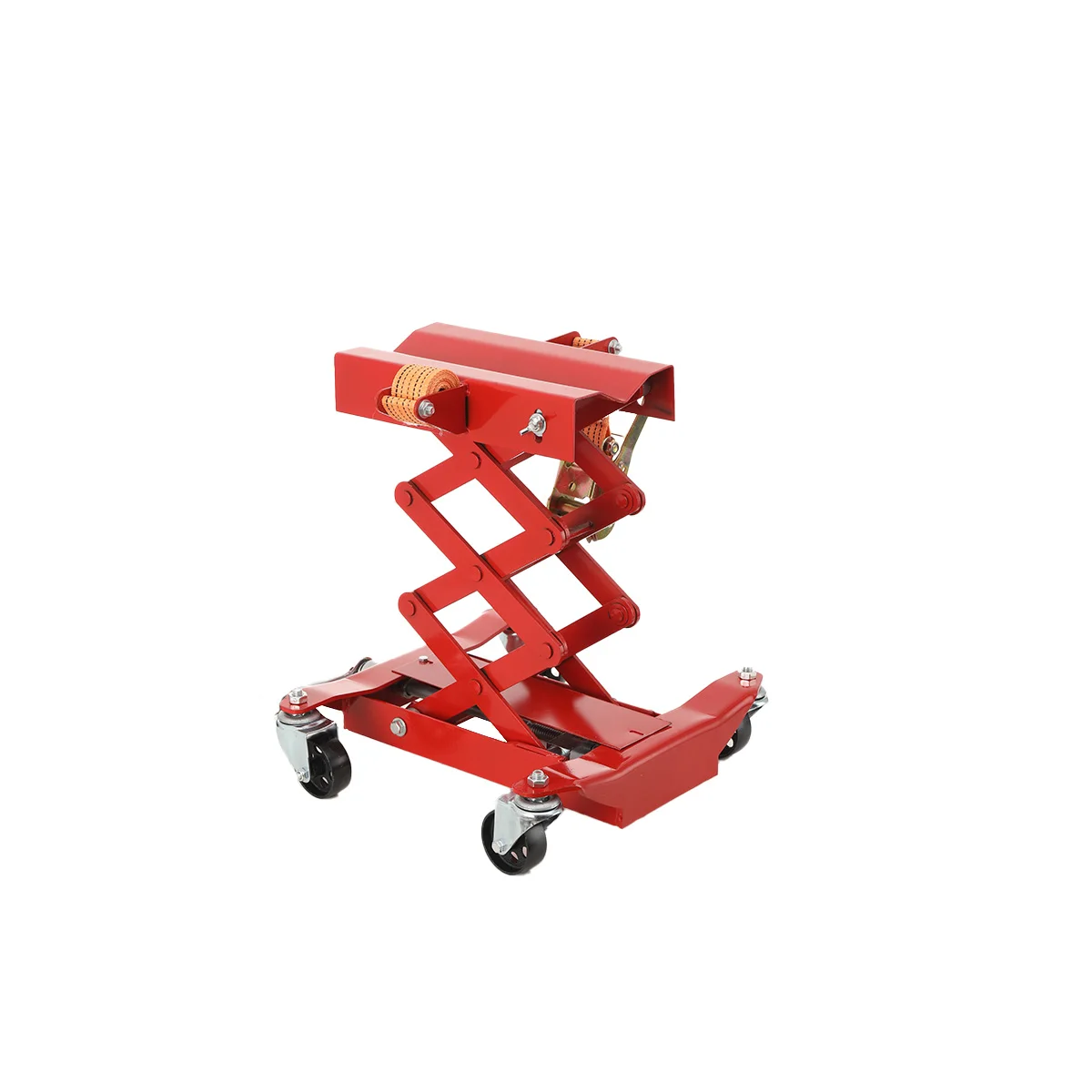

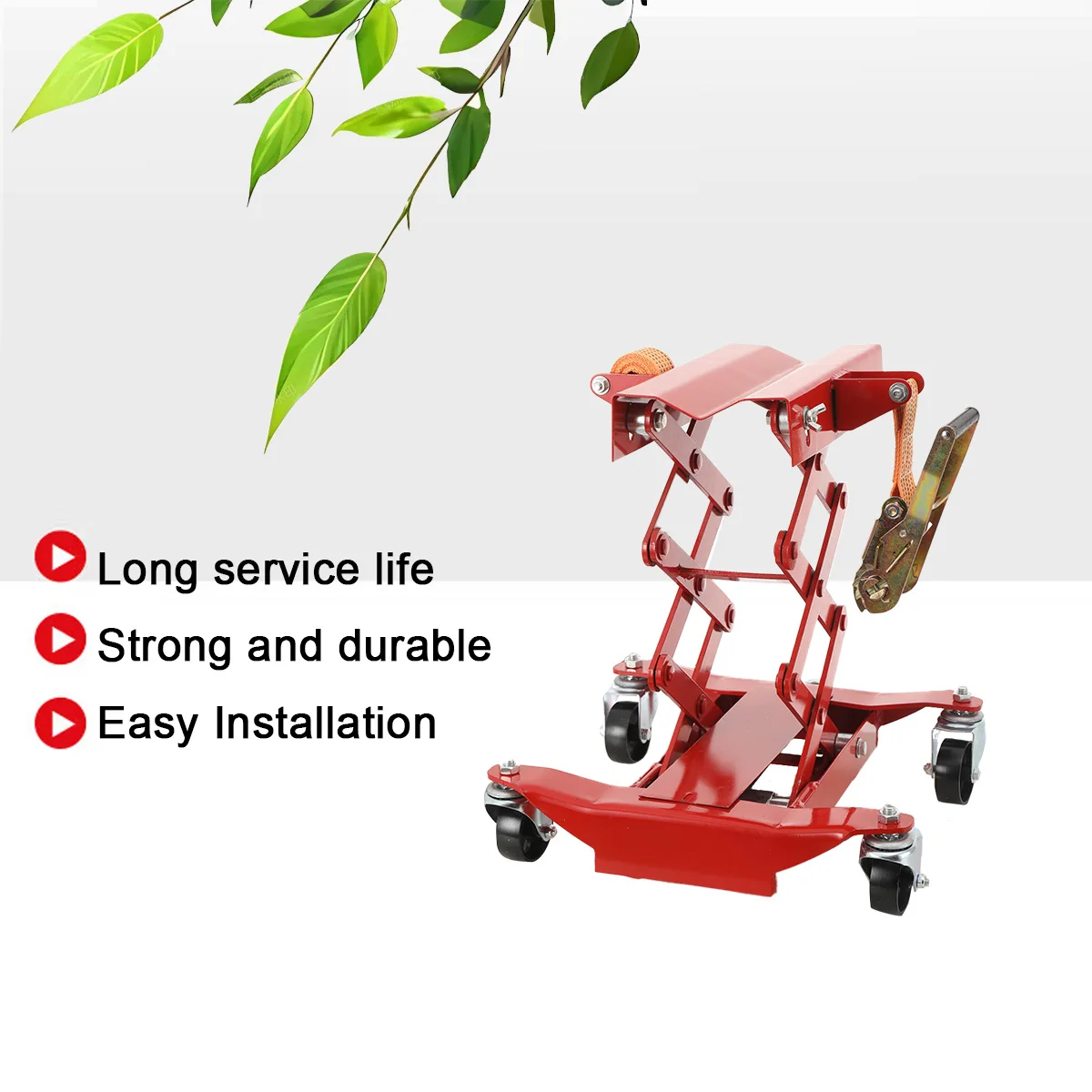

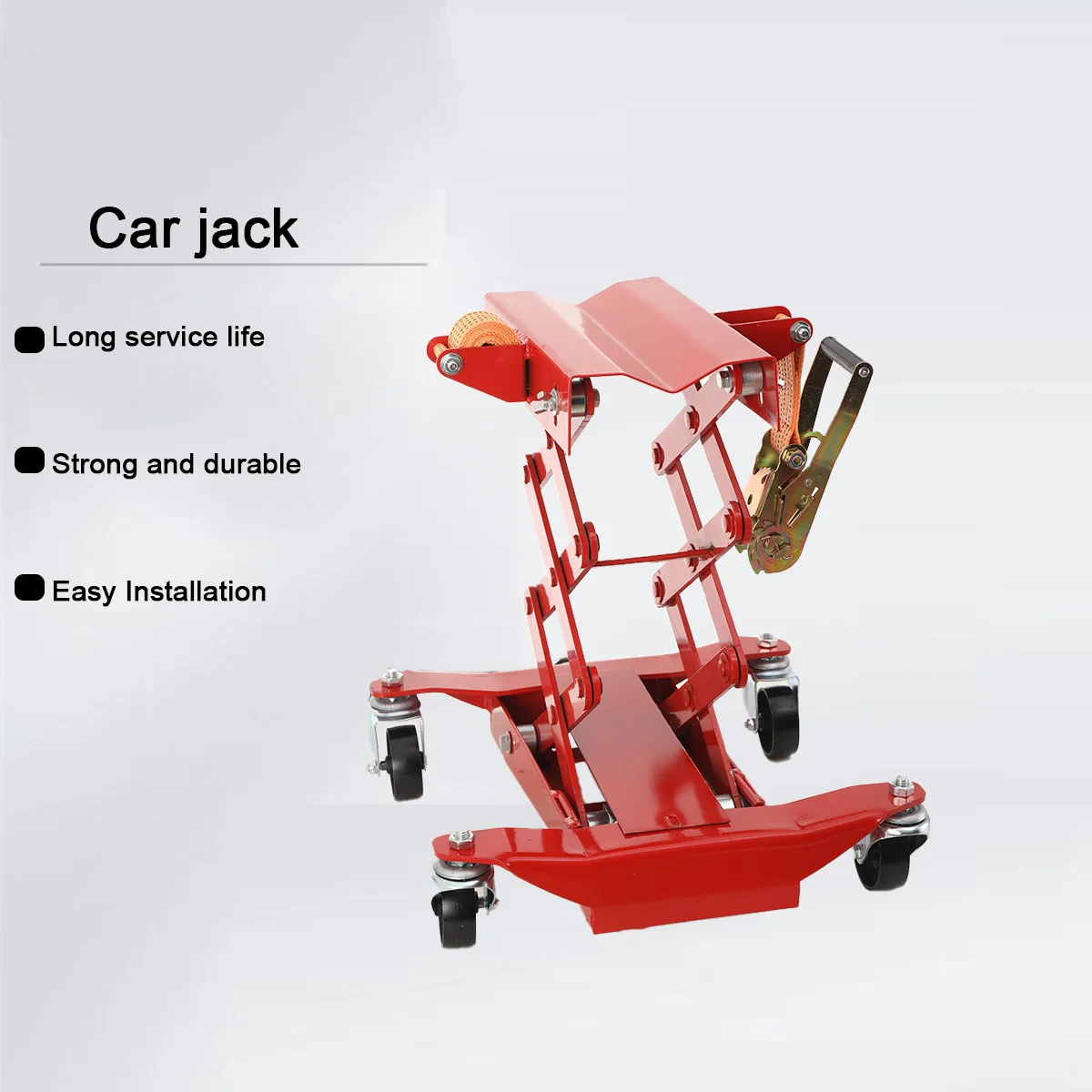

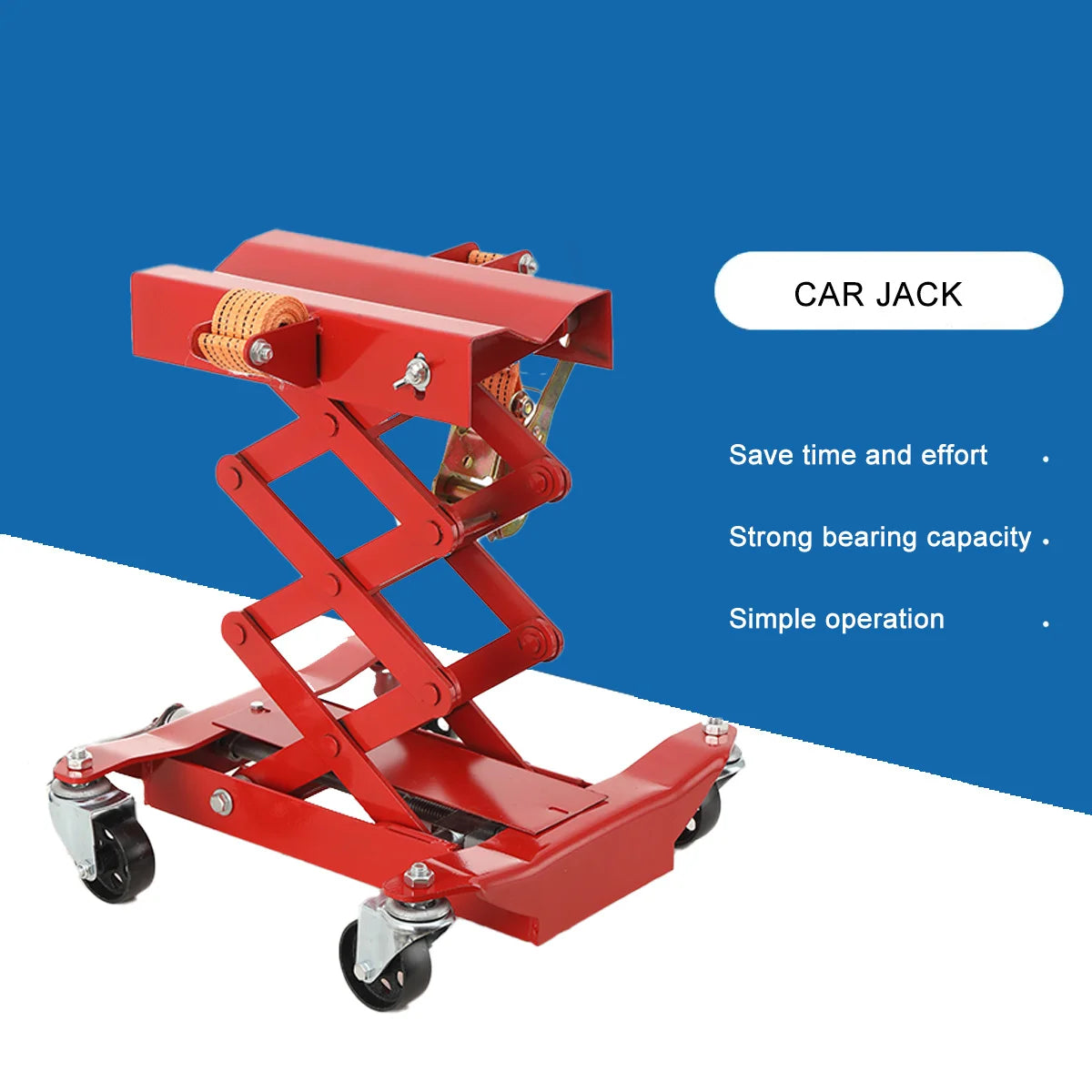

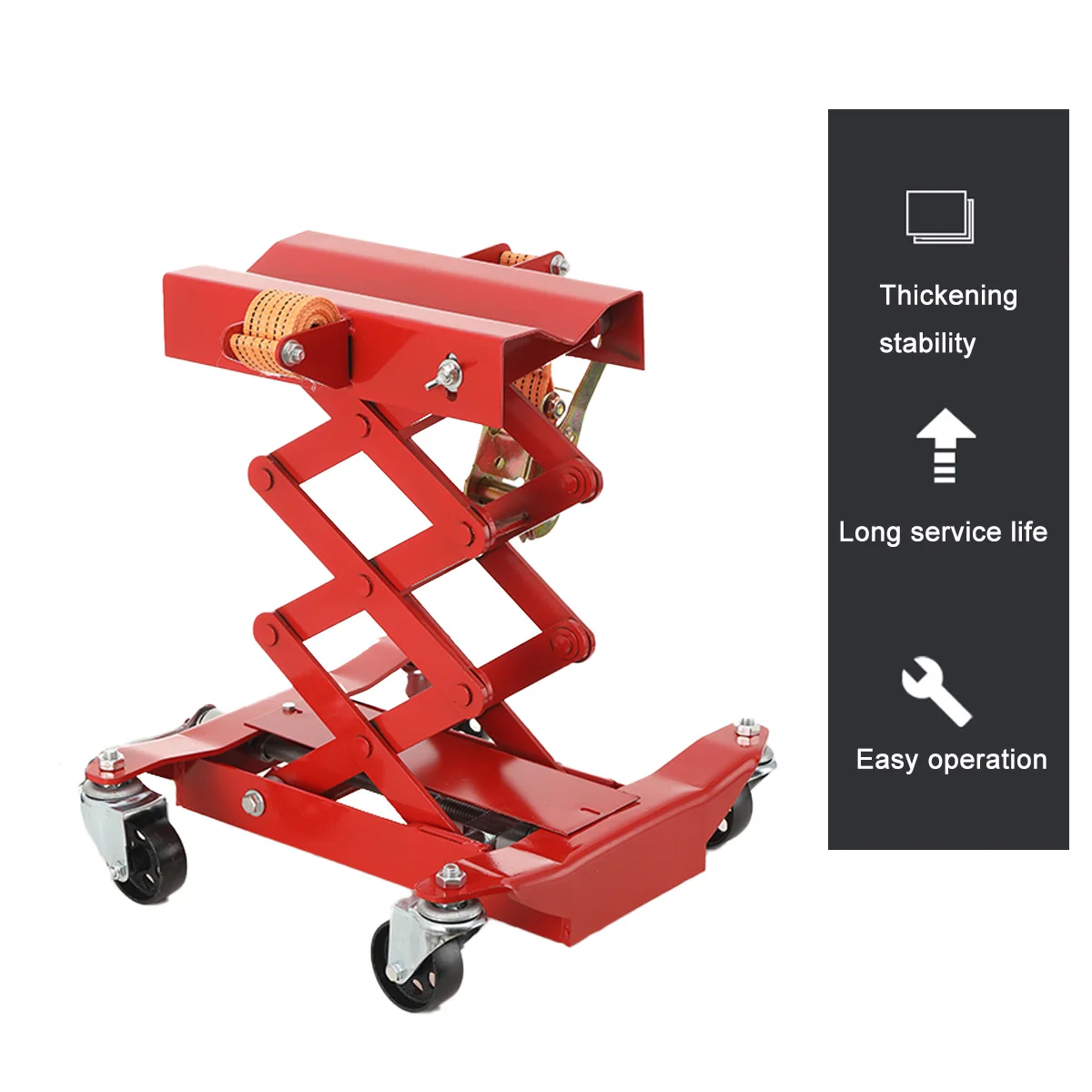

Easy to use scissor mechanism, which is hand operated, for precision when fitting the transmission unit.

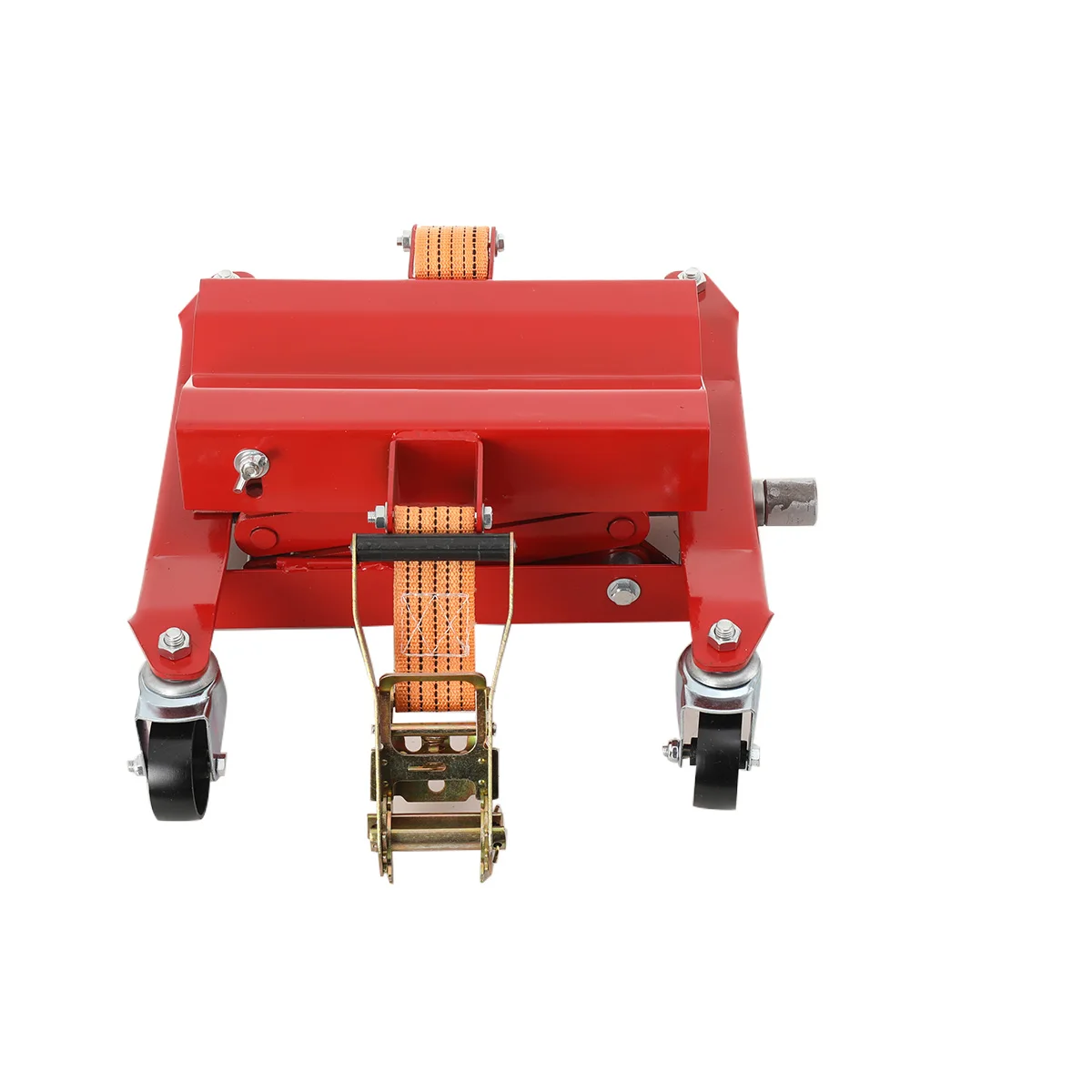

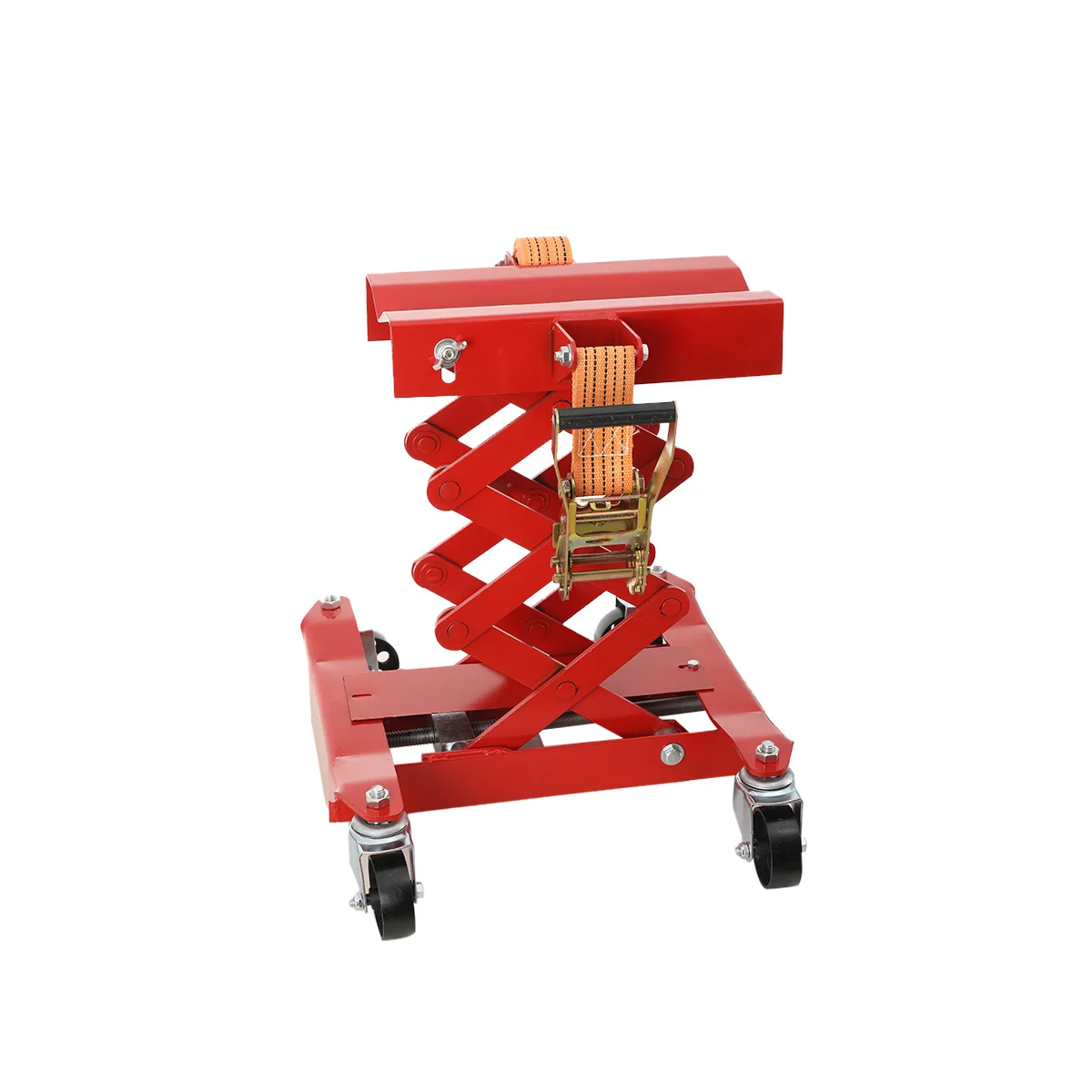

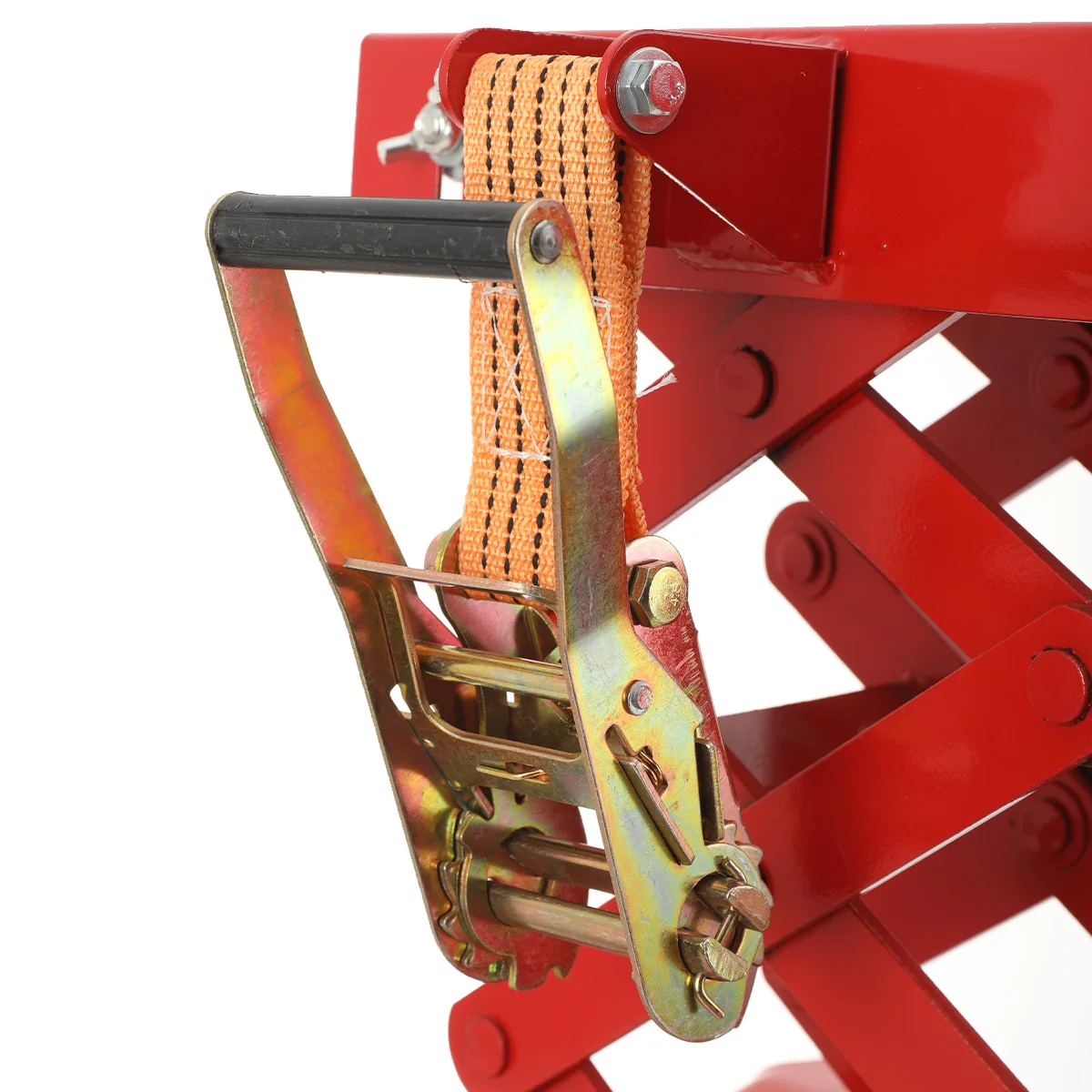

The saddle is fitted with a webbing strap with metal roller buckle to securely hold the load and has a 5° tilt adjustment.

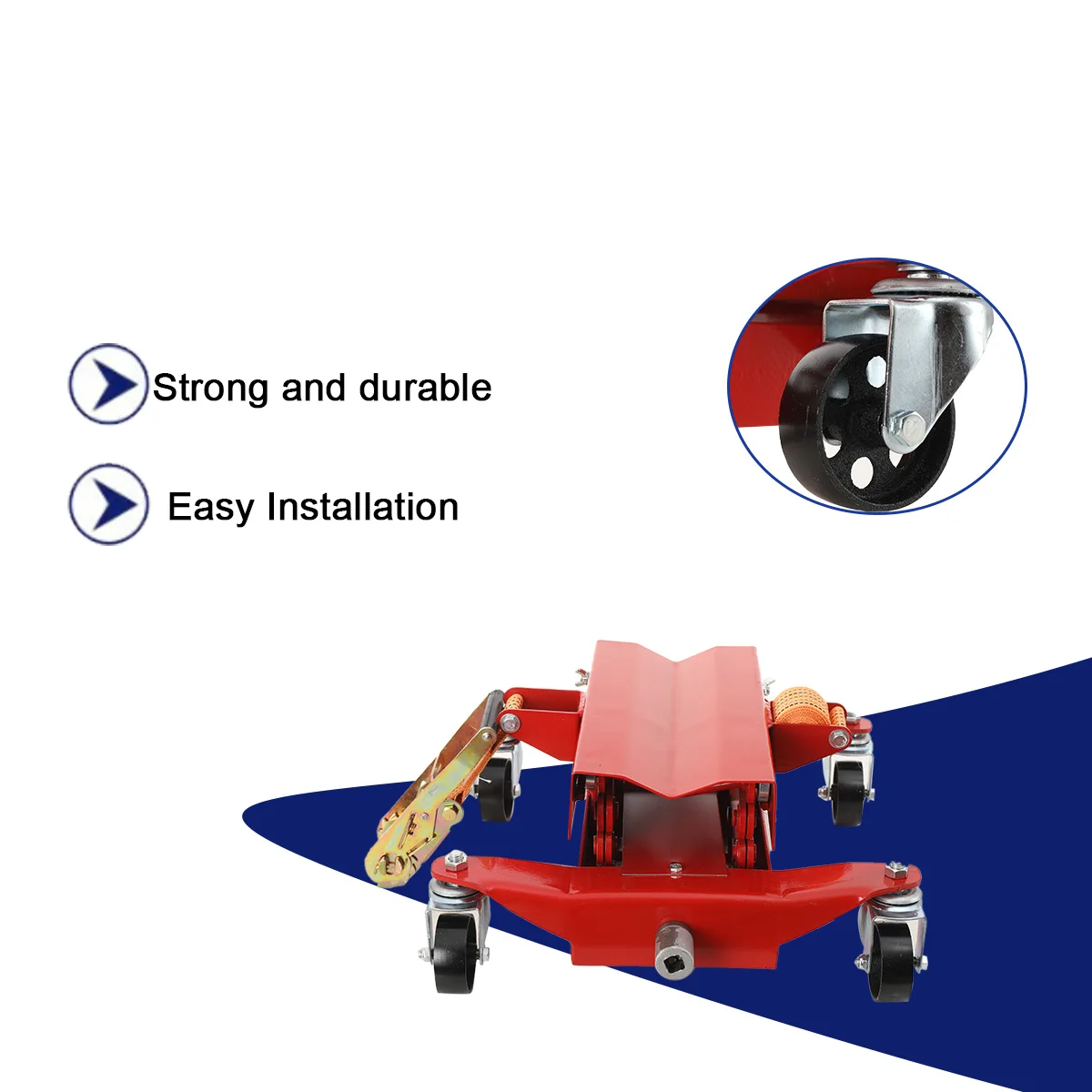

Four heavy-duty swivel castors provide flexibility of movement within the workplace.
Description:

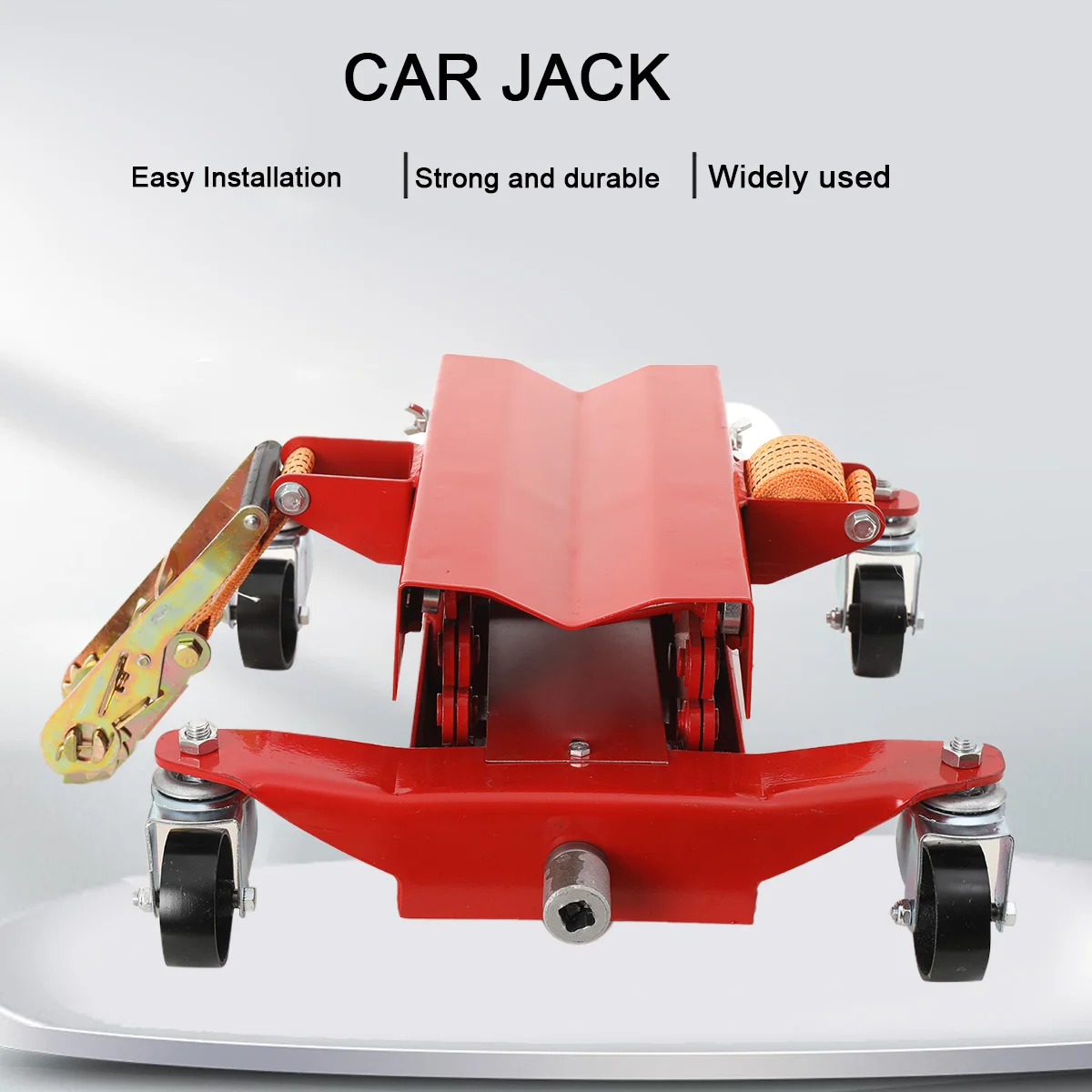

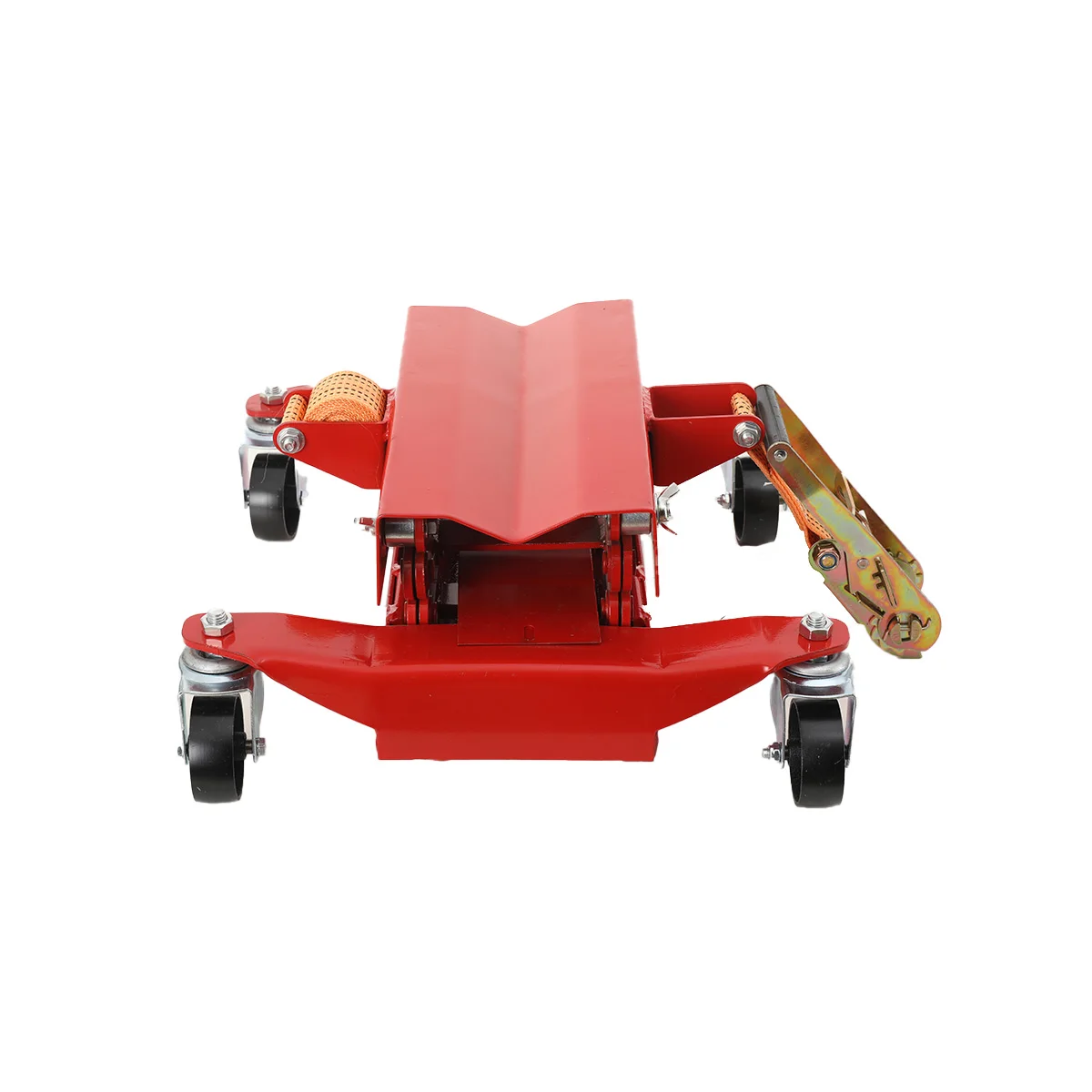

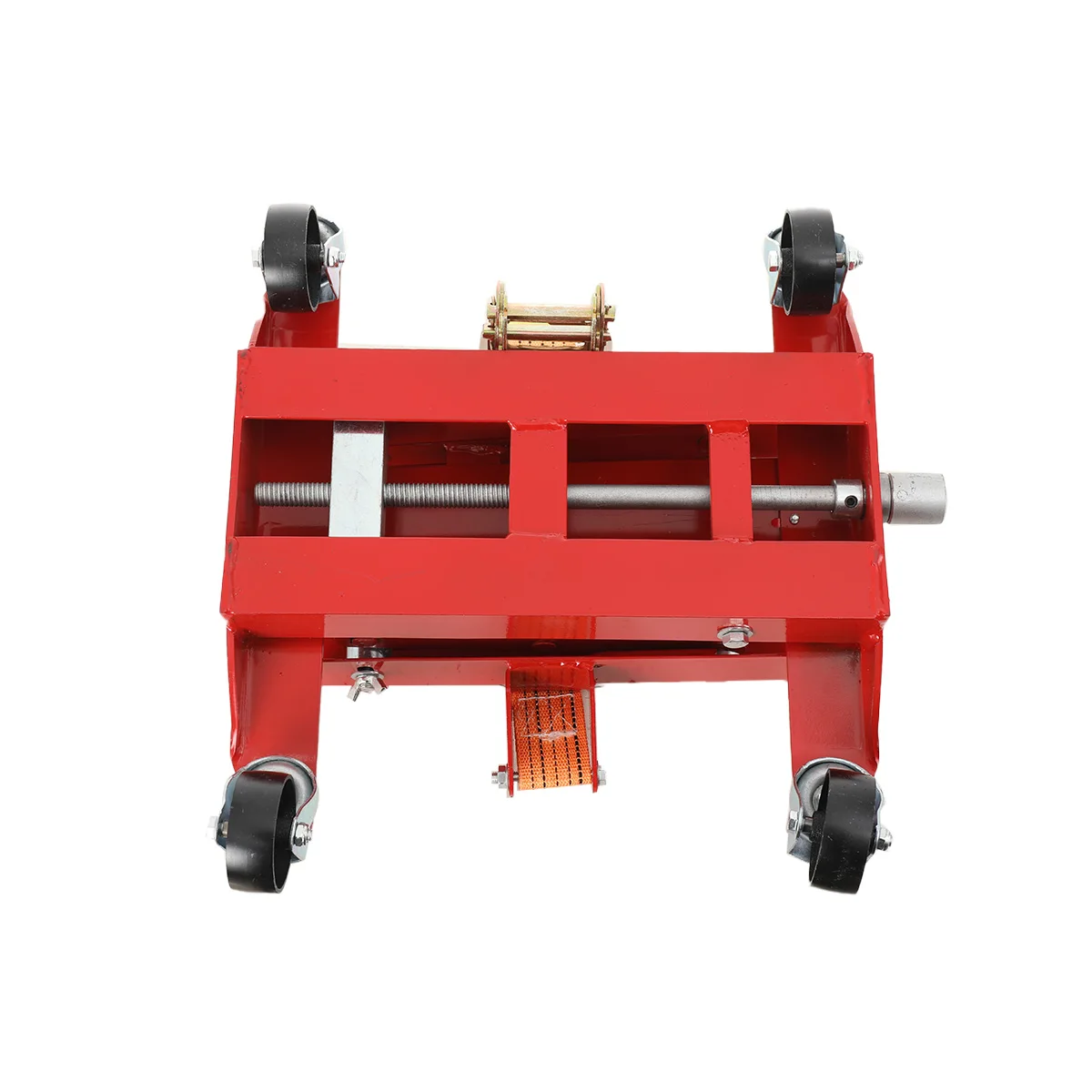

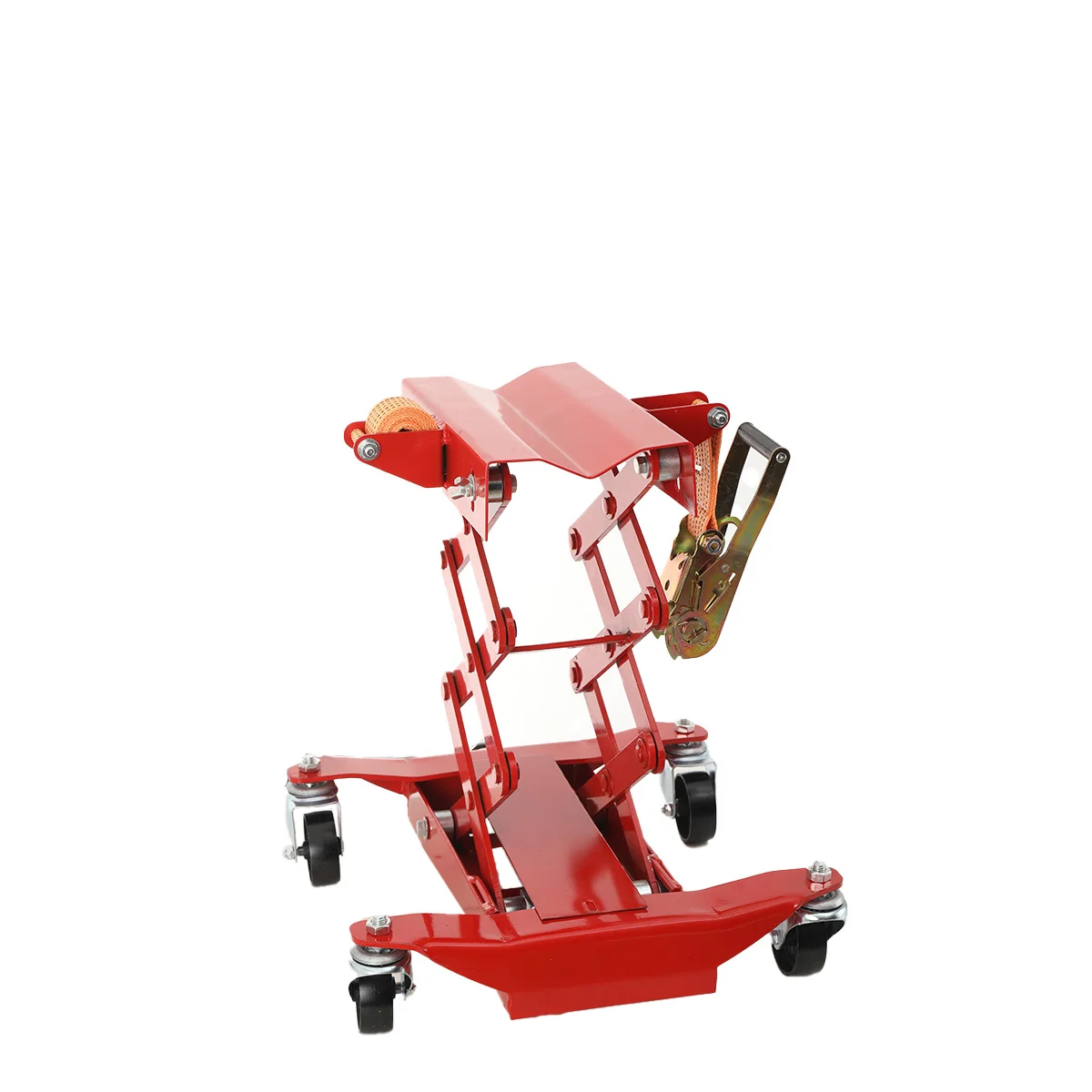

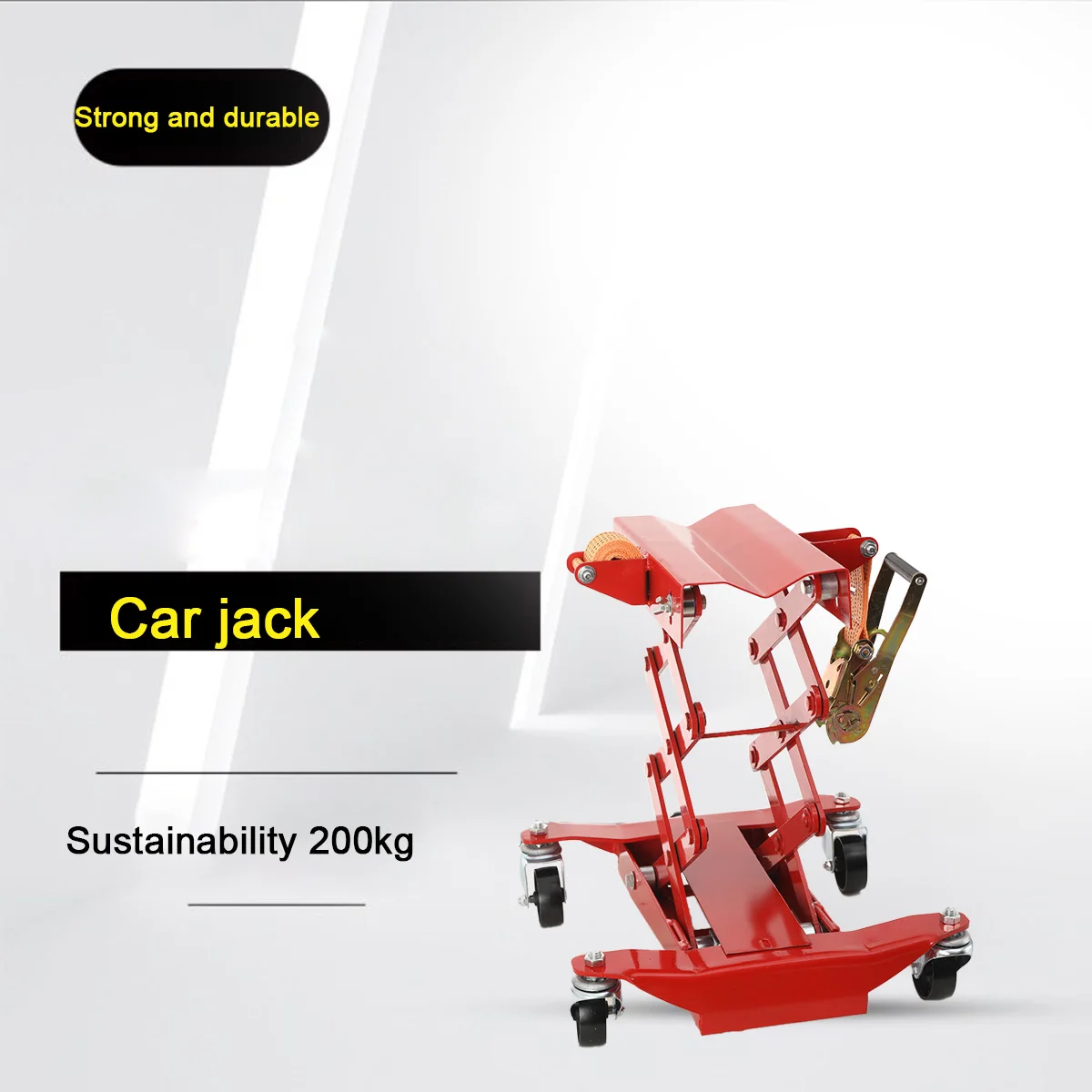

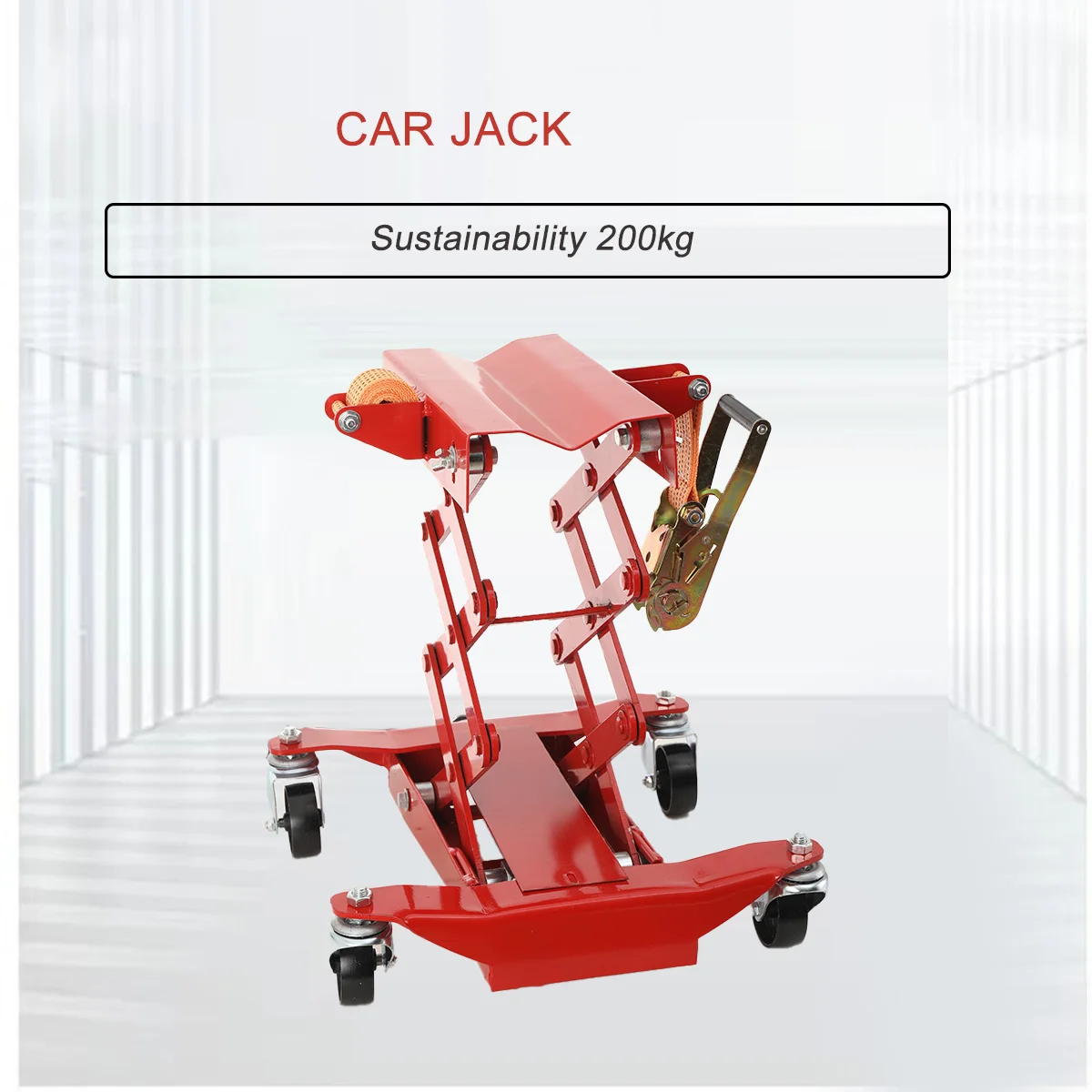

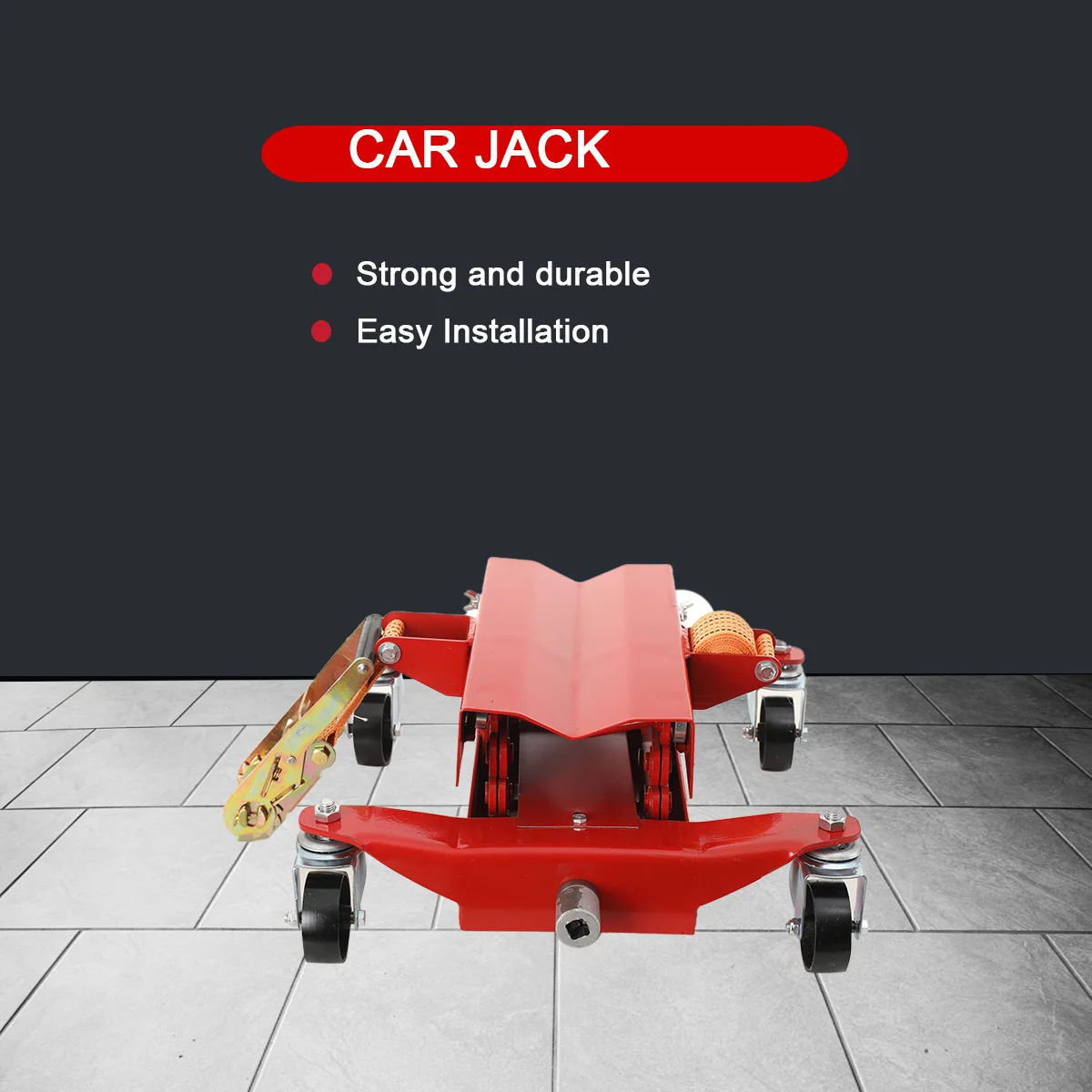

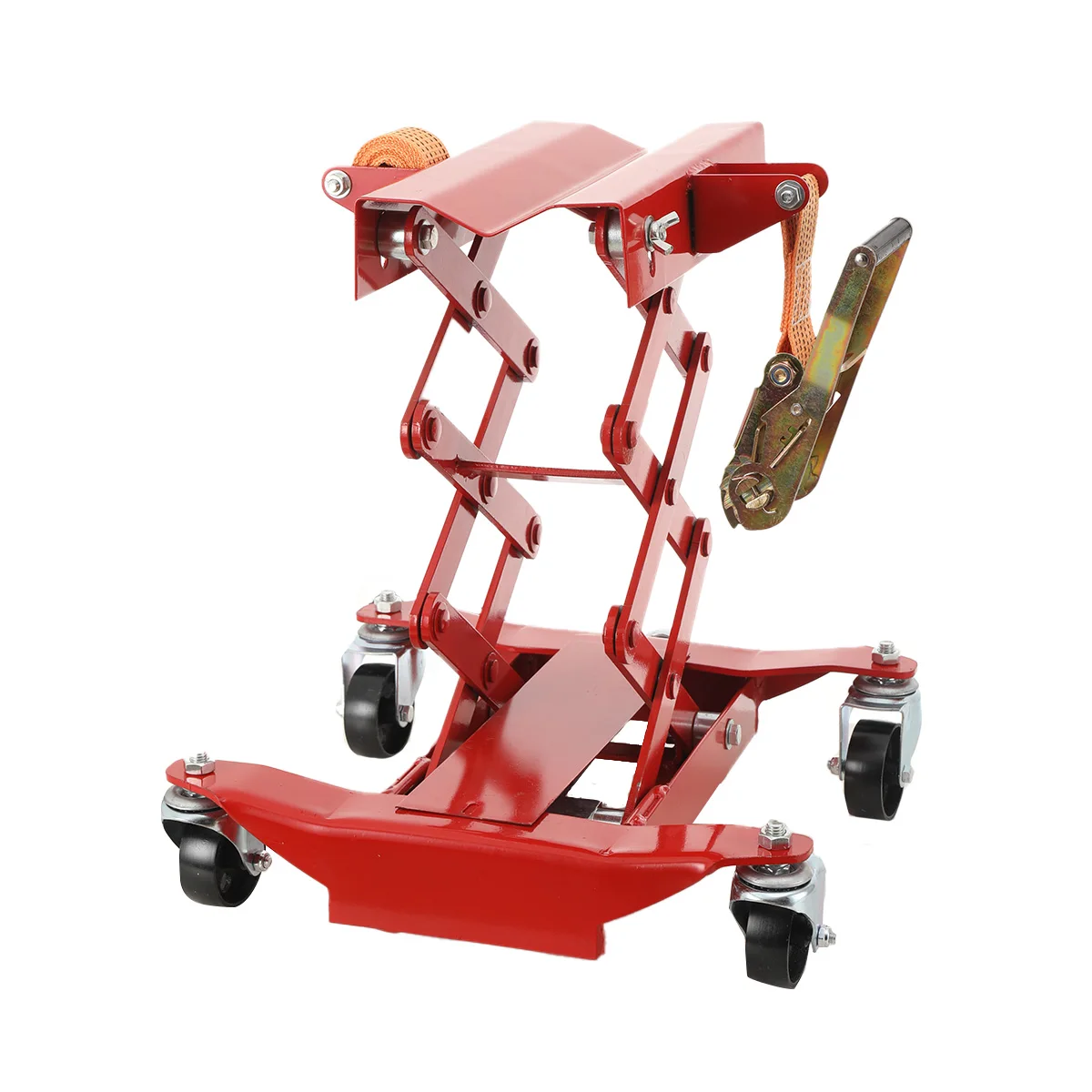

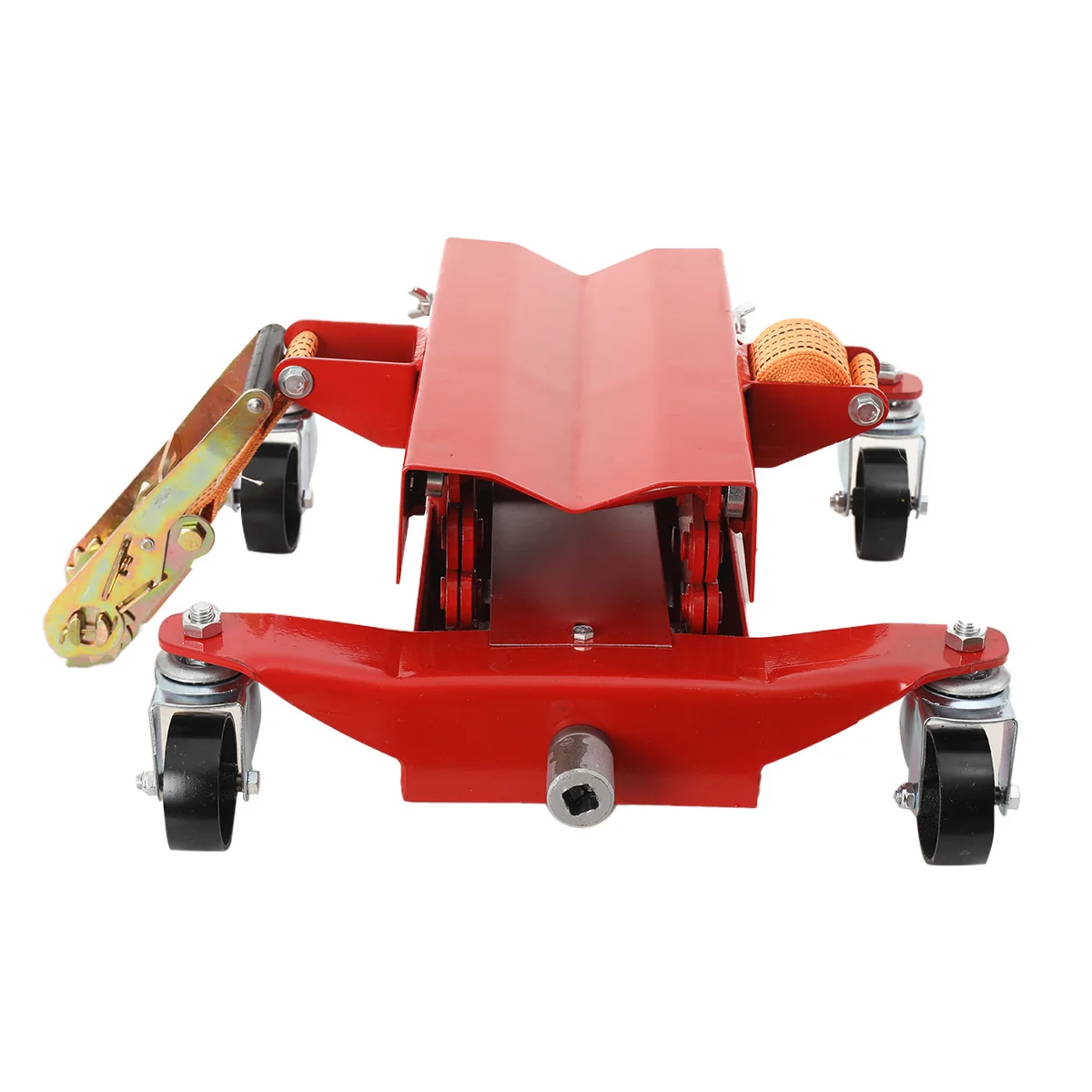

This floor transmission jack is designed for lifting and lowering gearboxes, prop shafts and differential units. The hand-operated scissor action provides precise movement enabling users to accurately manoeuvre and fit the transmission assembly. Fitted with a non-marking ratcheting tie-down strap to secure loads. Driven by a 1/2" Sq. Dr. adaptor. Four heavy-duty swivel castors provide flexibility of movement within the workplace. Capacity 200kg.
Technical Specifications:
Capacity: 200kg
Height: 185-590mm
Base dimensions: 420 x 400mm
Drive socket size: 1/2" Sq. Dr.
Saddle type: Fixed

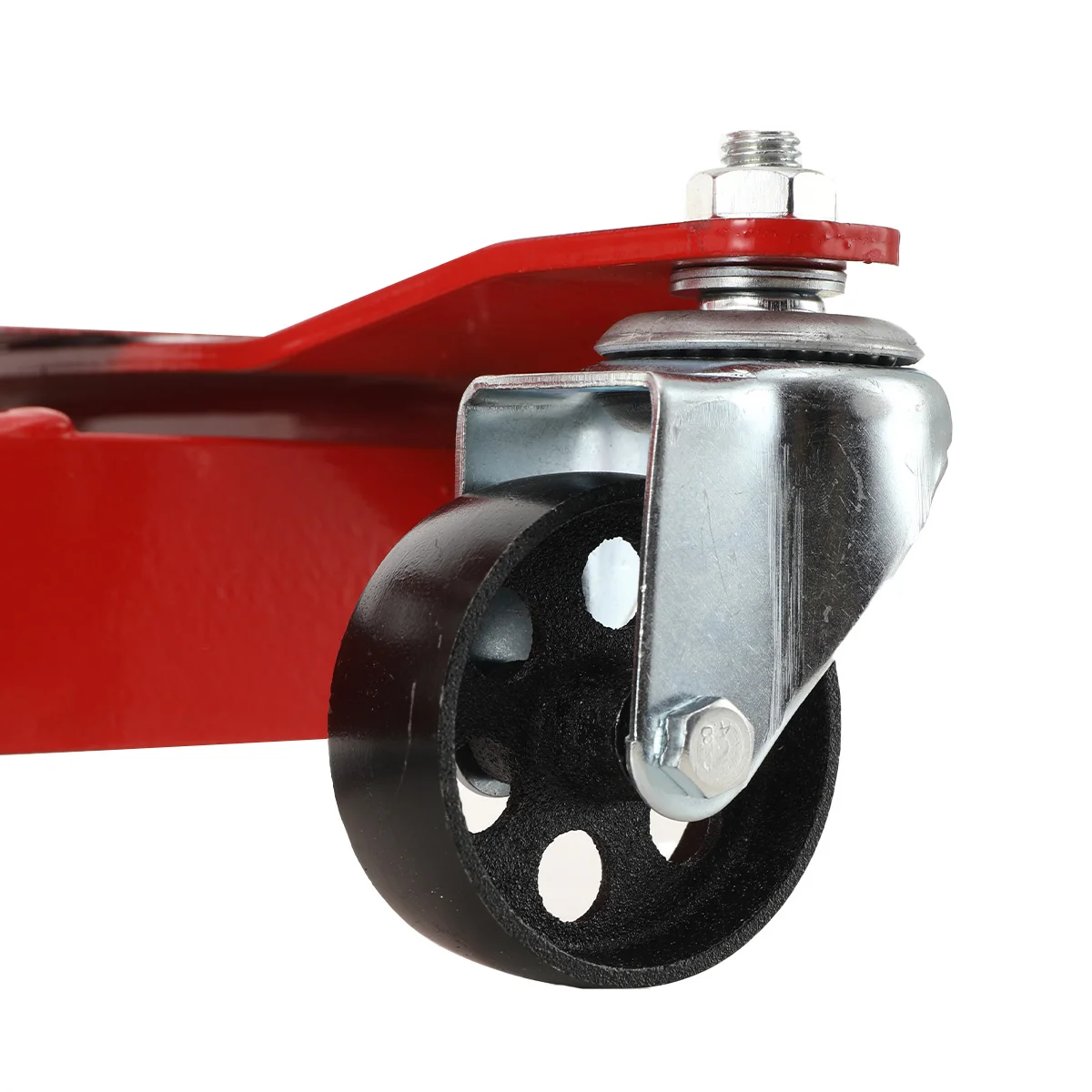

Castor diameter: 76mm
Weight: 18.50kg
Model No: 09021

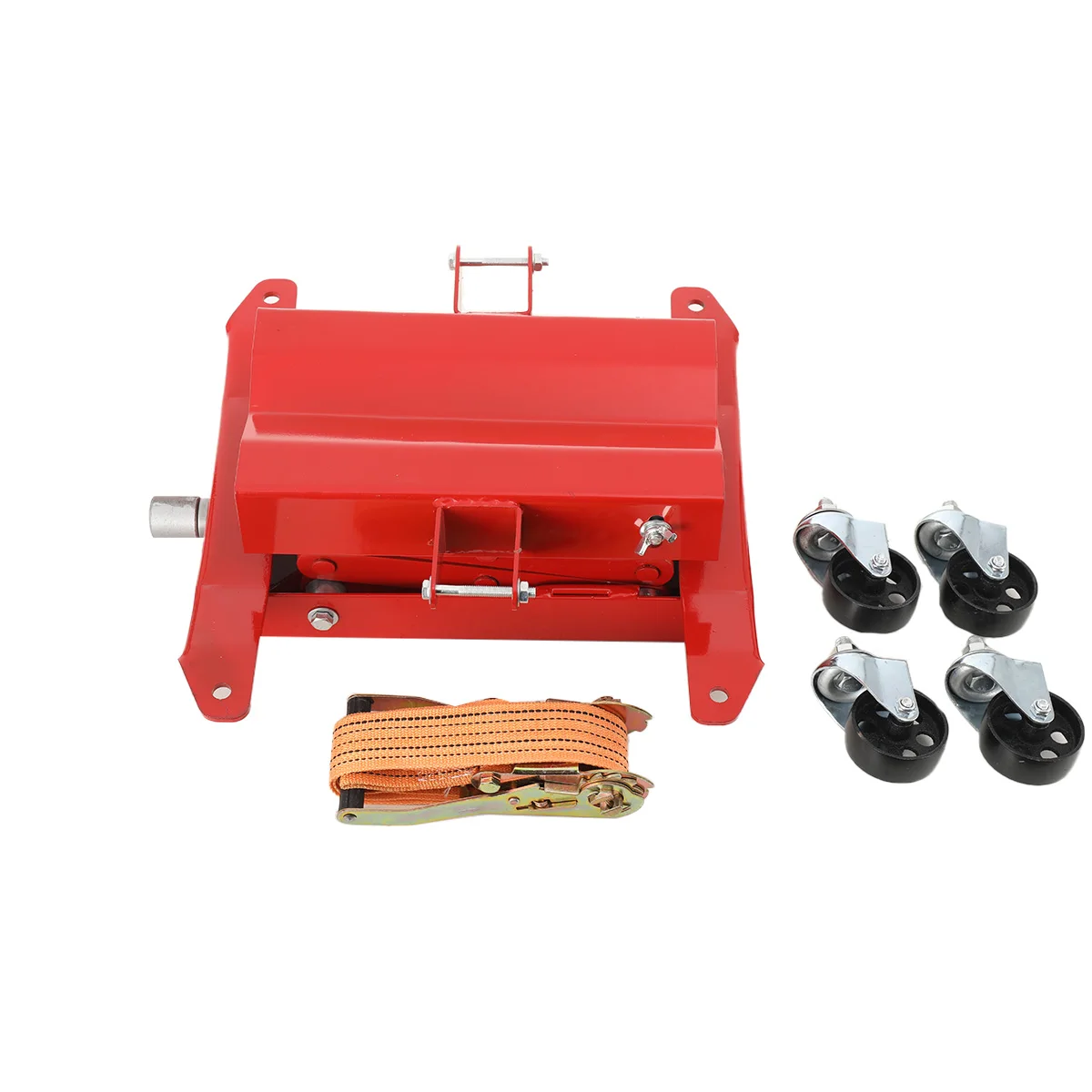

Packing List:
1 x Floor Transmission Jack, 200kg
